Optimized Functional Role for Industrial Metallurgy

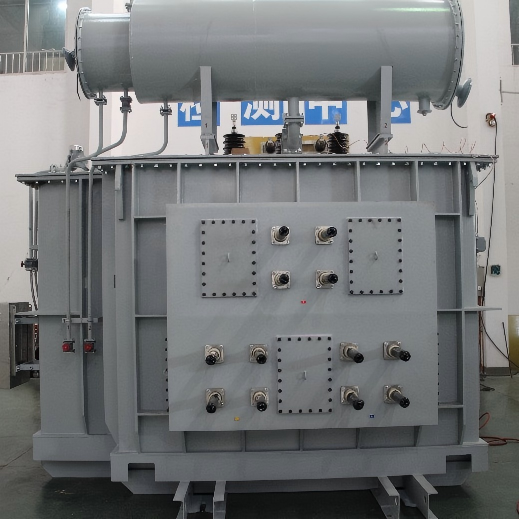

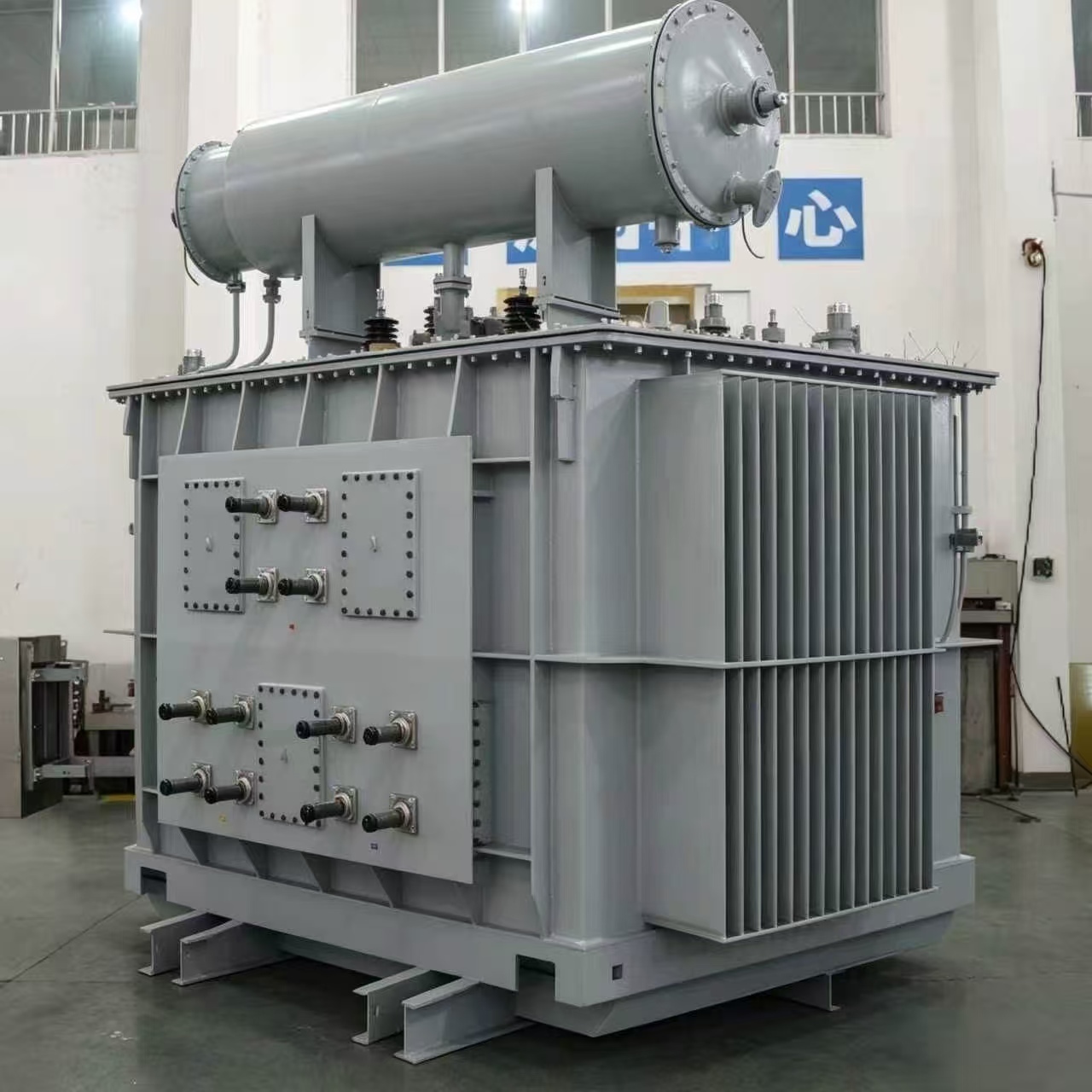

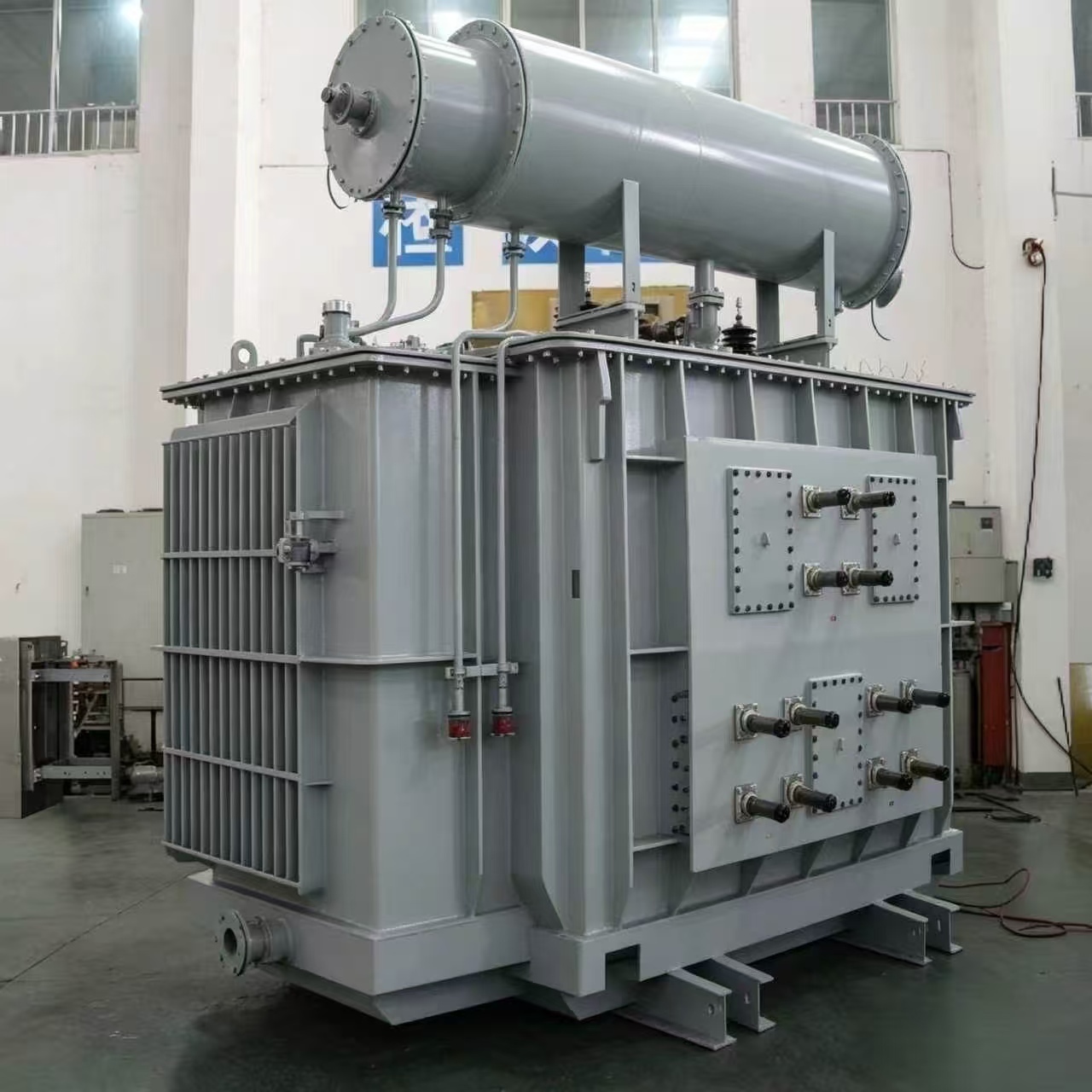

This electric furnace transformer is engineered for use in electric arc and ladle furnaces, targeting steel manufacturers and metallurgical plants requiring stable, efficient power amid extreme operating conditions. As a special design transformer, it provides precise voltage adaptation through on-load and off-circuit tap changing, enabling operators to maintain optimal arc stability and energy control. Its rugged construction withstands corrosion and mechanical stress in continuous melting environments. The product suits users who demand dependable power solutions that integrate seamlessly into large-scale furnace systems, ensuring uninterrupted production flow.
Advanced Technical Features and Customization Options
Constructed using premium grain-oriented silicon steel cores and robust insulation materials, the transformer minimizes losses and enhances thermal stability, supporting continuous, high-load performance. Capacities range from 500kVA to 100,000kVA with customizable primary voltages from 6kV up to 110kV, reflecting the versatility of this custom power transformer. Optional integrated series reactors further stabilize electric arc furnaces by reducing flicker and improving power factor. Cooling configurations such as ONAN, ONAF, and OFWF adapt the transformer to diverse thermal management requirements, optimizing operational longevity and efficiency.
Industrial Application and Operational Value
Widely applicable in steelmaking and smelting industries, this electric furnace transformer fulfills critical roles in submerged arc furnaces and specialized metallurgical processes including calcium carbide and yellow phosphorus production. As a special transformer tailored for harsh industrial environments, it consistently delivers low voltage, high current power with enhanced arc control. Its compliance with international ISO, CE, and IEC standards ensures reliability, safety, and compatibility within integrated industrial systems, thereby maximizing throughput and minimizing operational risks.
Product Advantages
Structural and Design Benefits Enabling Operational Reliability
The transformer features a sophisticated core assembly with 45° full-mitre joints that reduce core losses and audible noise. The robust insulation system enhances mechanical strength and short-circuit resistance, essential for demanding furnace conditions. Its modular design allows flexible connection schemes and voltage regulation options, categorizing it as a highly adaptable special design transformer. The sealed and vacuum-packaged main component mitigates moisture ingress, extending service life under high thermal and electrical stress, a key asset for the submerged arc furnace transformer manufacturer focused on durability.
Enhanced Performance and User-Centric Operational Features
Engineered to maintain voltage stability with excellent overload capacity, this special purpose transformer reduces downtime through low-maintenance design and accessible components. Its customizable parameters allow precise tailoring to user specifications, ensuring compatibility with existing power infrastructure. The inclusion of 24/7 technical support coupled with compliance to global quality standards enhances user confidence in reliability and operational continuity. These features collectively strengthen user value by delivering consistent performance and reducing lifecycle costs in challenging metallurgical environments.
Specifications & Parameters
As a leading provider of electric furnace transformer solutions, we offer a wide range of specifications tailored to various furnace types:
| Category | Specification / Description |
| Product Category | Electric Arc Furnace Transformer |
| Application Range |
Submerged arc furnace transformer, Iron alloy furnace transformer, Calcium carbide furnace transformer, Yellow phosphorus furnace transformer，Rock wool electric furnace transformer |
| Output Voltage | Low voltage, multi-stage adjustable |
| Phase | Single phase (standard for ESR) or Three-phase |
| Cooling Method | ONAN, ONAF, OFWF |
| Capacity | 500kVA - 100,000kVA (Customizable) |
| Primary Voltage | 6kV, 10kV, 35kV, 110kV (Customizable) |
| Secondary Voltage | Low voltage, high current (adjustable per process) |
| Connection Symbol | Yd11, Dy11, or per requirement |
Packaging, Warranty & Certifications Packaging：
Main body packed in moisture-proof vacuum packaging; accessories packed in robust, export-standard wooden crates.Reinforced for sea, rail, or road freight to ensure the special transformer arrives in perfect condition.
Warranty：
12-18 Month Warranty,we stand by our quality with an industry-leading warranty period.24/7 Technical Support,on-site installation guidance and remote technical consultations.
Certifications & Testing：
IISO 9001:2015 Quality Management System.CE & IEC Standards,fully compliant with international electrical safety and performance standards for electric furnace transformer manufacturing.Full type test reports from accredited third-party laboratories.
Use Scenarios
Stable Power Supply for Electric Arc Furnaces in Steel Plants
In steelmaking facilities, electric arc furnaces demand transformers capable of delivering high-current, low-voltage power with minimal arc instability. This electric furnace transformer provides critical power conditioning and voltage regulation to maintain stable melting conditions, thereby optimizing energy consumption and furnace efficiency. It integrates seamlessly with control systems and ladle furnaces, ensuring continuous operation under thermal and dynamic load stresses. The robust design supports compliance with industrial electrical safety standards, making it an essential component for steel producers seeking reliable power delivery solutions.
Supporting Calcium Carbide Production with Precise Electrical Control
Calcium carbide furnaces operate under extreme thermal loads requiring highly stable and efficient power supplies. Our special transformer offers tailored voltage regulation, enhanced thermal stability, and low impedance to minimize energy loss and arc fluctuations. As a trusted product of a leading submerged arc furnace transformer manufacturer, it ensures uninterrupted operation during sensitive metallurgical reactions. Integration into existing smelting workflows allows operators to leverage advanced voltage tap changing and cooling methods that improve operational stability and extend transformer longevity in this energy-intensive application.
What types of customization do you offer for the electric arc furnace transformer?
We provide extensive customization options including primary and secondary voltage levels, capacity from 500kVA to 100,000kVA, and connection schemes tailored to your operational demands. Our team ensures your custom power transformer fits the specific requirements of your steelmaking or industrial process.
What materials are used in the construction of your special transformer?
Our special transformer features premium grain-oriented silicon steel sheets for the core, with corrosion-resistant steel construction and advanced insulation designed for high mechanical strength and short-circuit resistance, ensuring durability in harsh electric furnace environments.
How do you support installation and maintenance for your electric furnace transformer?
We provide detailed installation guidance and accessible component designs that allow for low-maintenance operation, minimizing downtime. Additionally, our 24/7 technical support ensures that you receive expert assistance whenever needed throughout the transformer’s service life.
What logistics and packaging methods do you use for international shipping?
We employ moisture-proof vacuum packaging for the transformer body along with export-standard wooden crates for accessories to ensure safe transport. Our experience as a submerged arc furnace transformer manufacturer includes reliable delivery to destinations worldwide with full compliance to international standards.
