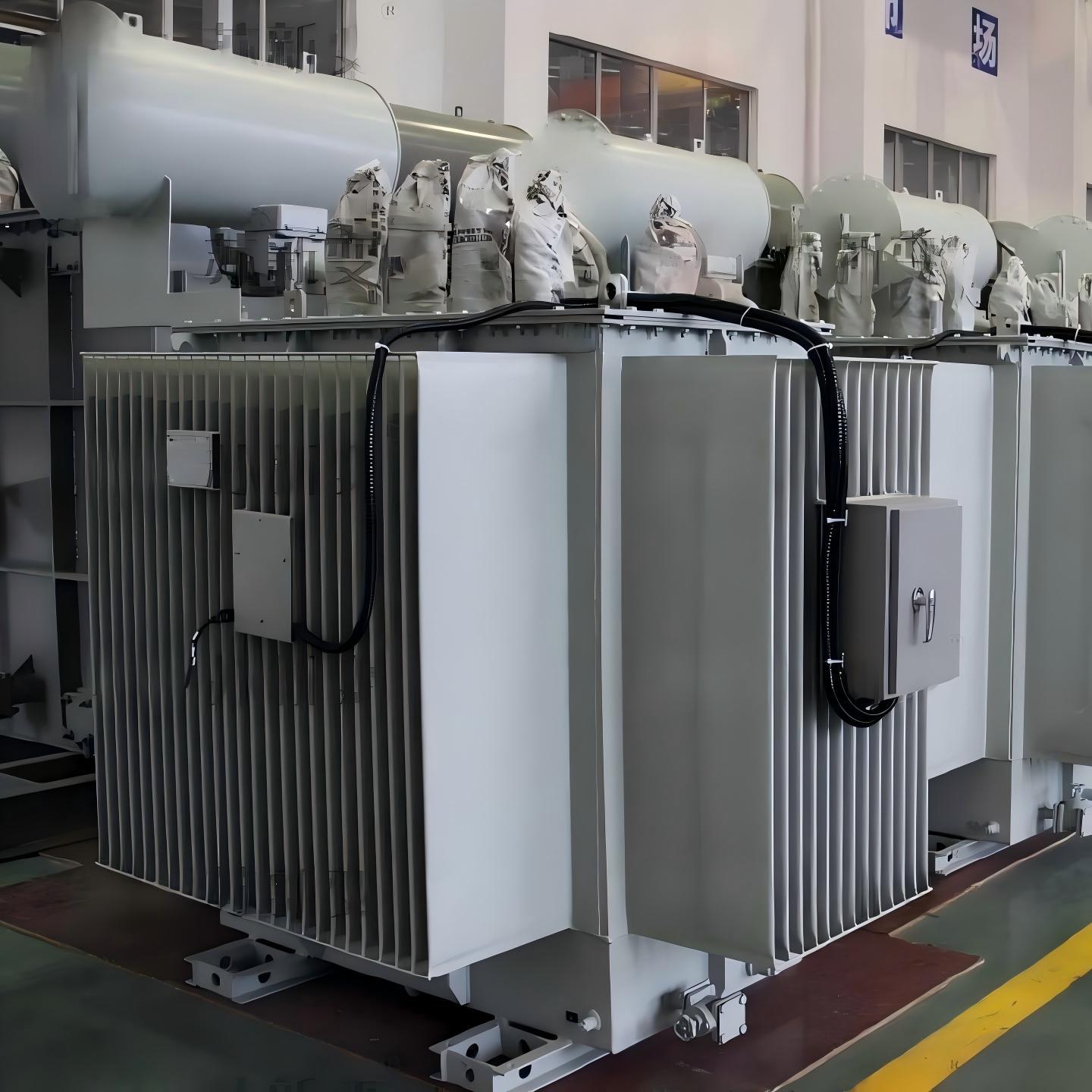

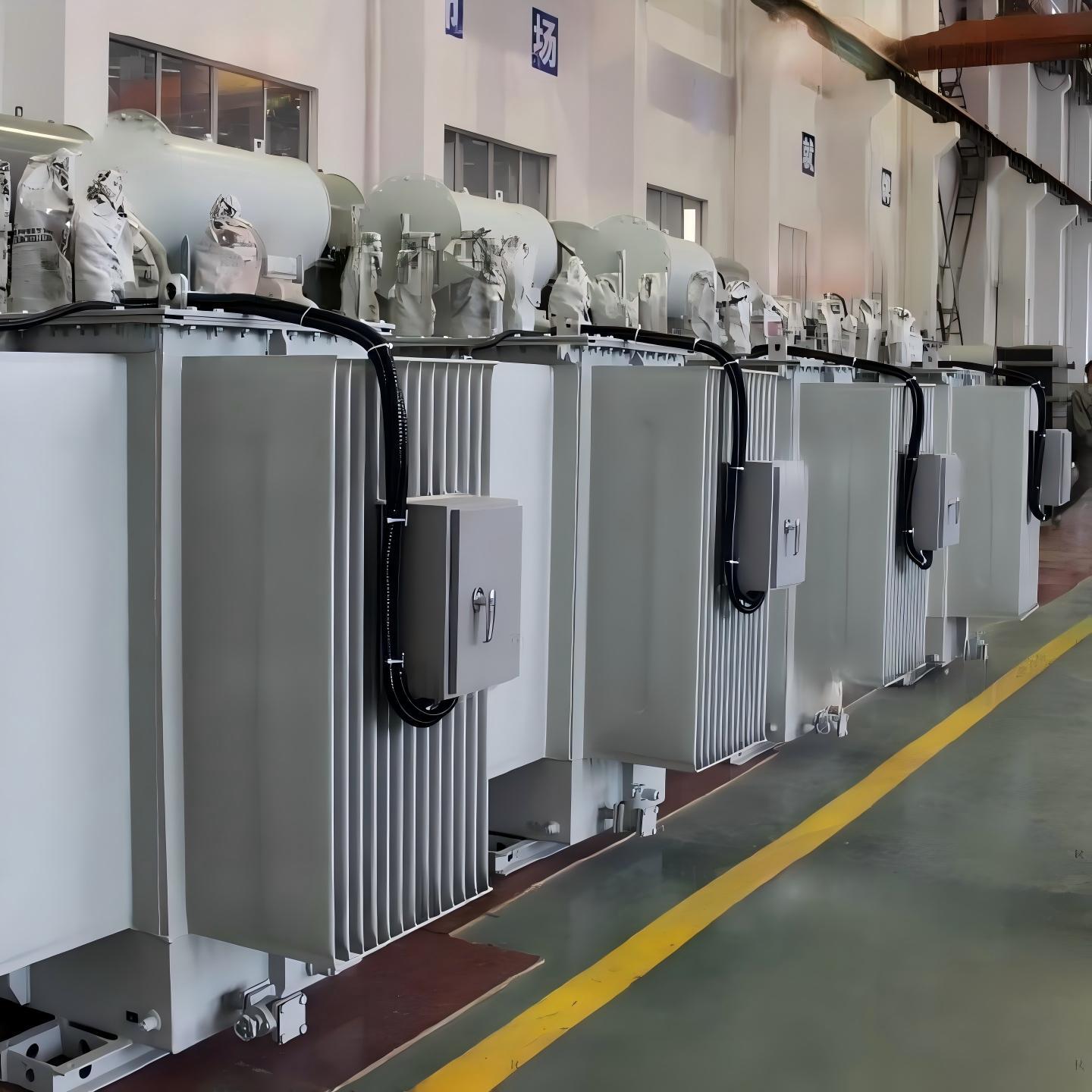

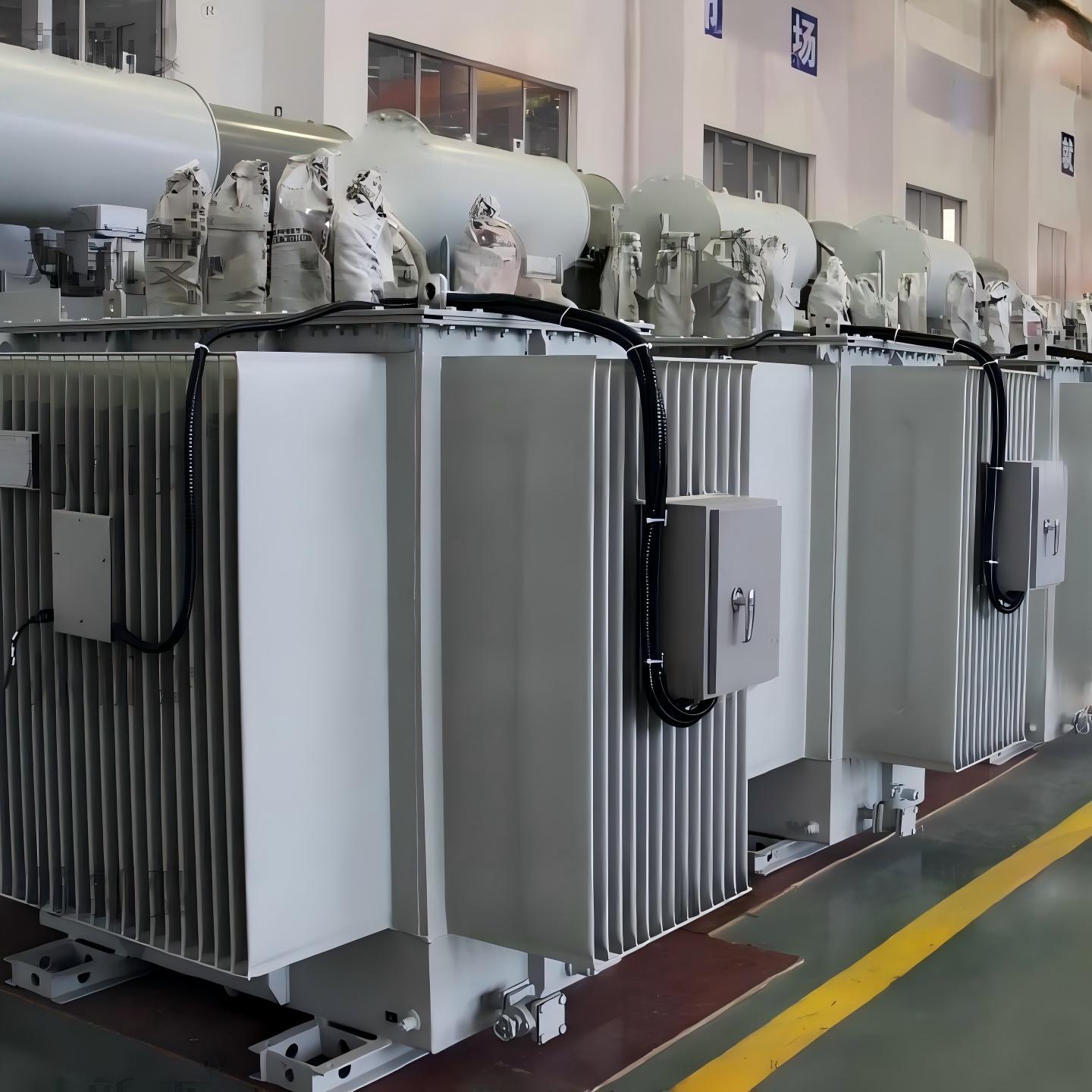

Enhance your grid reliability with our premium 10kV distribution transformer.
Designed for modern power systems, this electrical distribution transformer utilizes advanced electromagnetic induction technology to provide stable AC power to end-users.
Our power distribution transformer features a fully sealed, maintenance-free design with a corrugated tank structure. By integrating high-permeability core materials and oxygen-free copper windings, we deliver a power and distribution transformer solution that minimizes energy loss, reduces noise, and ensures environmental safety.
Whether for research institutes, commercial buildings, or industrial facilities, these transformers distribution units provide the stability and durability required for high-demand environments.
Key Features & Advantages
Our distribution transformers are engineered for excellence, featuring:
• Advanced Core Design
Utilizing new high-permeability materials and a full-slant seven-seam structure for uniform magnetic distribution and significantly lower no-load loss.
• Superior Winding Craftsmanship
High and low voltage windings use high-quality oxygen-free copper and multi-layer cylindrical structures for maximum conductivity.
• Superior Thermal Management
The electrical power distribution transformers include axial oil passages to optimize flow to high-temperature zones, paired with beautiful, compact corrugated radiators.
• Maintenance-Free "No-Core-Lifting" Structure
Special anti-vibration fastening and a three-point positioning system eliminate the need for core inspection upon arrival, saving time and costs.
• Eco-Friendly Sealing
High-strength steel tanks with the latest acrylate sealing gaskets prevent oil leakage and prevent environmental pollution.
• Flexible Voltage Regulation
Equipped with non-excitation tap changers (off-circuit) with a range of 10±2×2.5%KV to ensure output stability.
Specifications & Parameters
This distribution transformer series strictly adheres to international and national standards including GB1094 and GB/T6451.
| Category | Specification / Description |
| Type | Oil-Immersed, Three-Phase, Double-Winding |
| Rated Voltage | Primary: 10kV / Secondary: 0.4kV (Customizable) |
| Tapping Range | non-excitation tap changers (off-circuit) 10±2×2.5%KV |
| Frequency | 50 Hz / 60 Hz |
| Connection Group | Dyn11 / Yyn0, or per customer requirement |
| Regulation Type | Non-excitation (Off-circuit) Voltage Regulation |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Core Material | High-permeability Silicon Steel |
| Winding Material | 99.9% Pure Oxygen-free Copper |
| Ambient Temperature | -25°C to +40°C |
Key Performance Data (Example for 10kV Series)
The table below illustrates the tiered efficiency levels for the 10kV series. Please contact us for the complete datasheet covering all voltage classes and ratings.
10kV Oil-Immersed Three-Phase Non-Excited Tap Distribution Transformer Loss Table
| Rated Capacity (kVA) | Efficiency Level 1 |
Efficiency Level 2 |
Efficiency Level 3 |
short-circuit impedance% |
|||
| No-Load Loss(W) | Load Loss (W) | No-Load Loss(W) | Load Loss (W) | No-Load Loss (W) | Load Loss (W) | ||
| 630 | 460 | 4460 | 510 | 4960 | 570 | 6200 | 4.5 |
| 800 | 560 |
5400 | 630 | 6000 | 700 | 7500 | 4.5 |
| 1000 | 665 | 7415 | 745 | 8240 | 830 | 10300 | 4.5 |
| ... | ... | ... | ... | ... | ... | ... | |
| 2500 | 1280 | 13360 | 1440 | 14840 | 1600 | 21200 | 5.0 |
Packaging, Warranty & Certifications Packaging：
Export-standard reinforced steel frames or sea-worthy wooden crates designed to withstand vibration and tilt during international transit.
Warranty：
We provide a comprehensive 12-18 months quality guarantee and lifetime technical support.
Quality Certifications：
Fully compliant with GB1094 and GB/T6451.
ISO 9001:2015 Quality Management System certified.
CE & IEC or other standards compatible for global distribution.
Testing：
Full type-test and routine-test reports provided.
Pre-filled with high-grade insulating oil; "No-Core-Lifting" design allows for immediate installation upon delivery.
