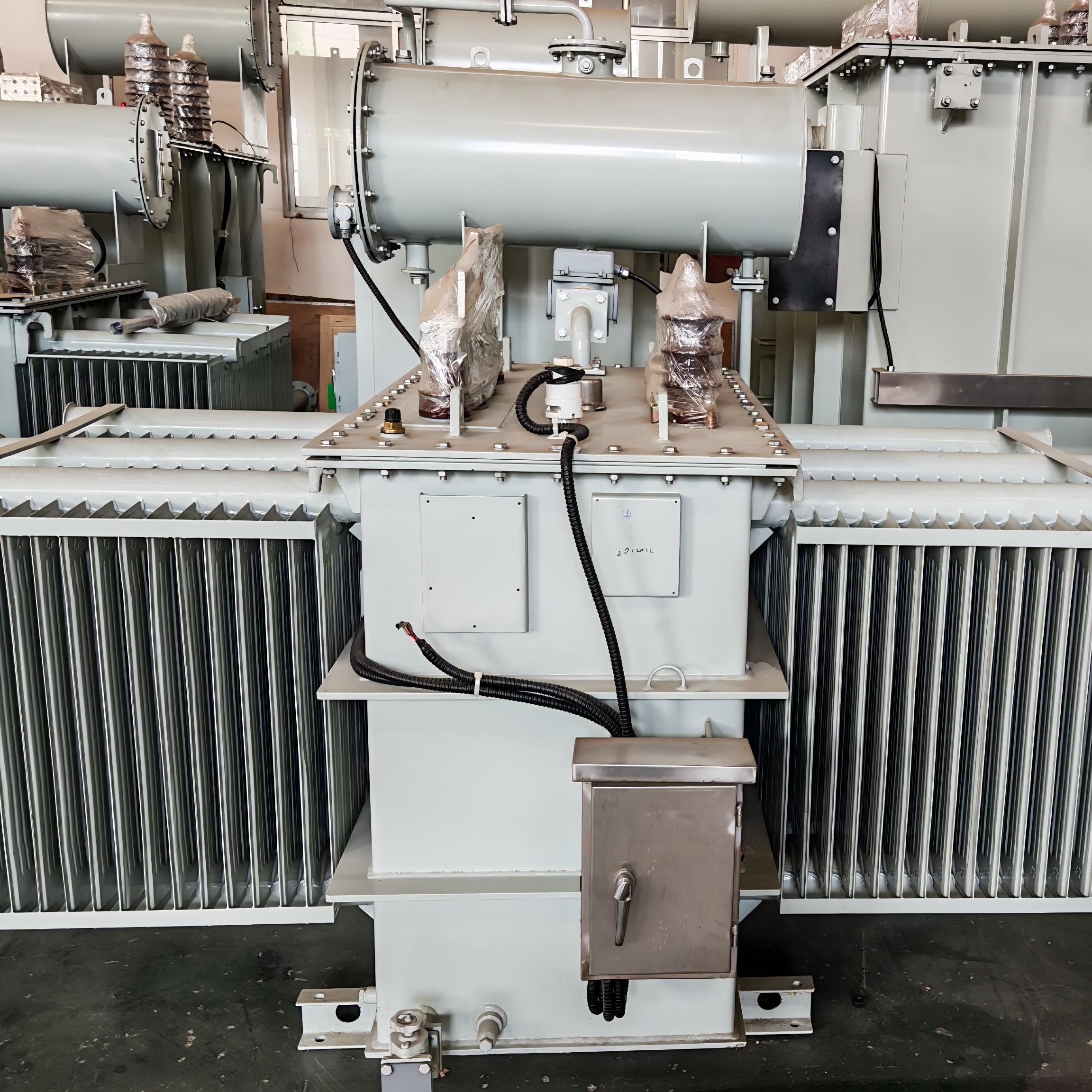

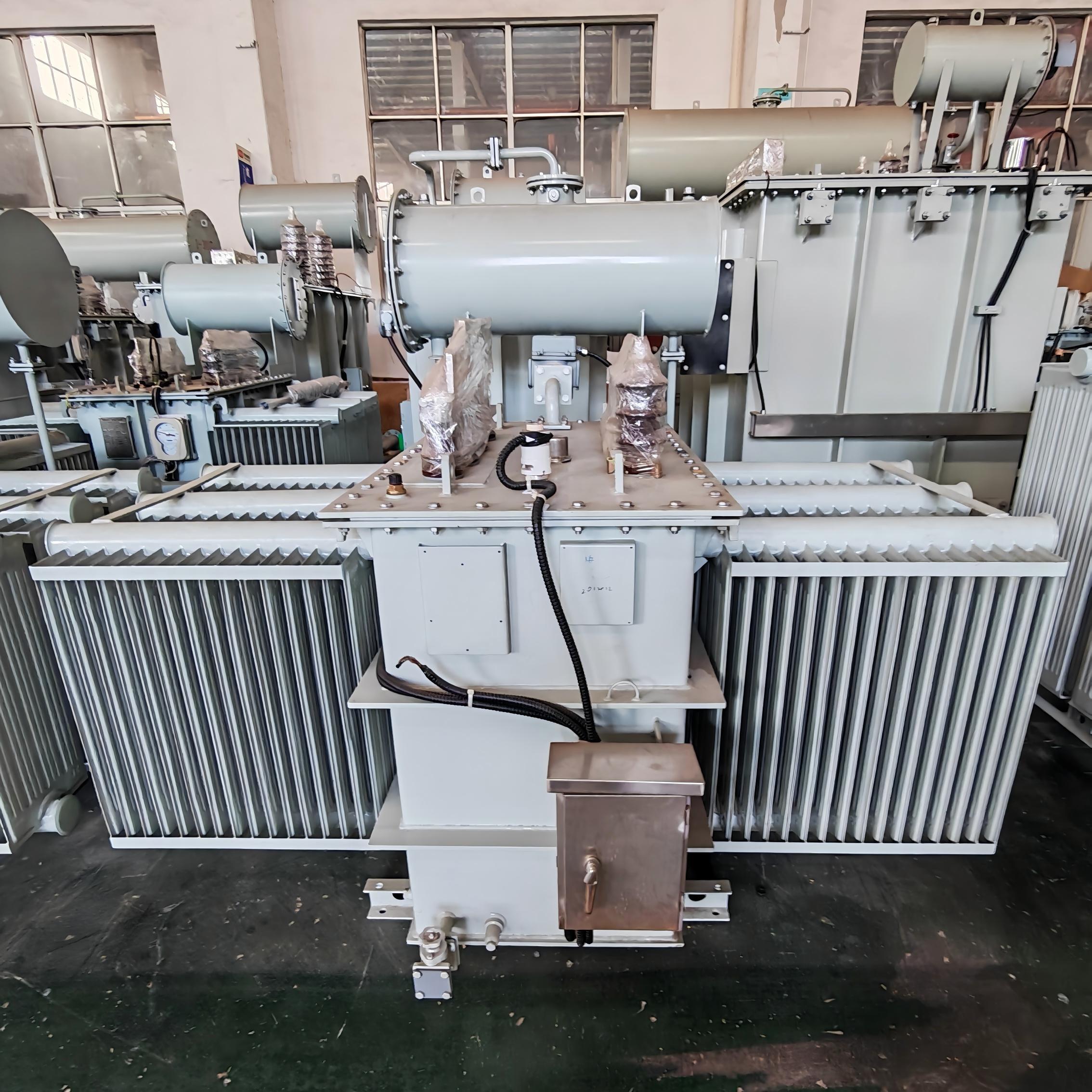

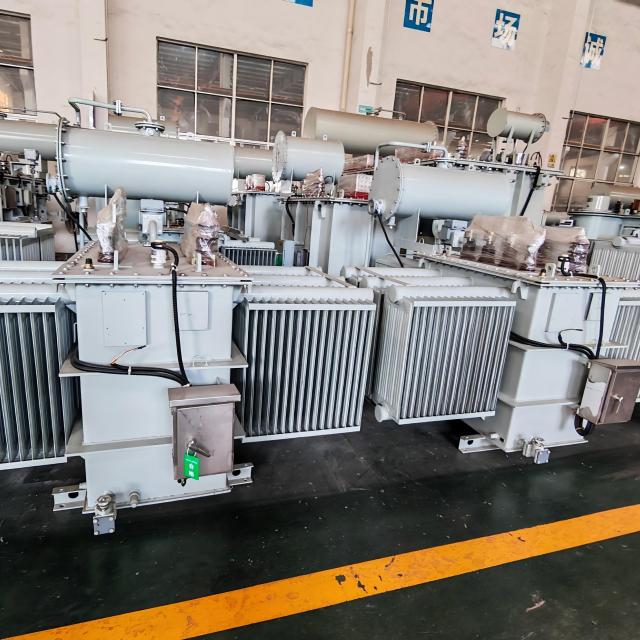

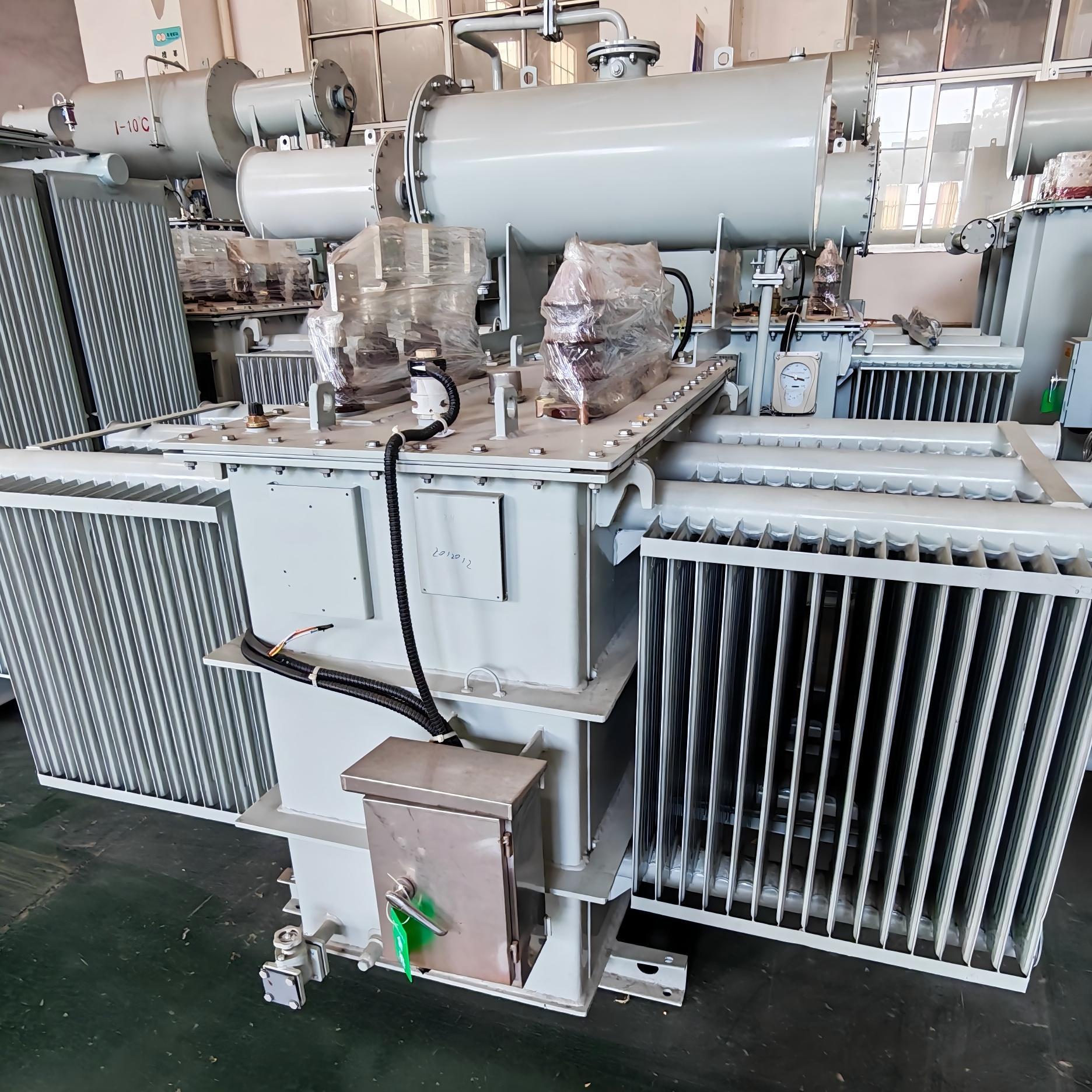

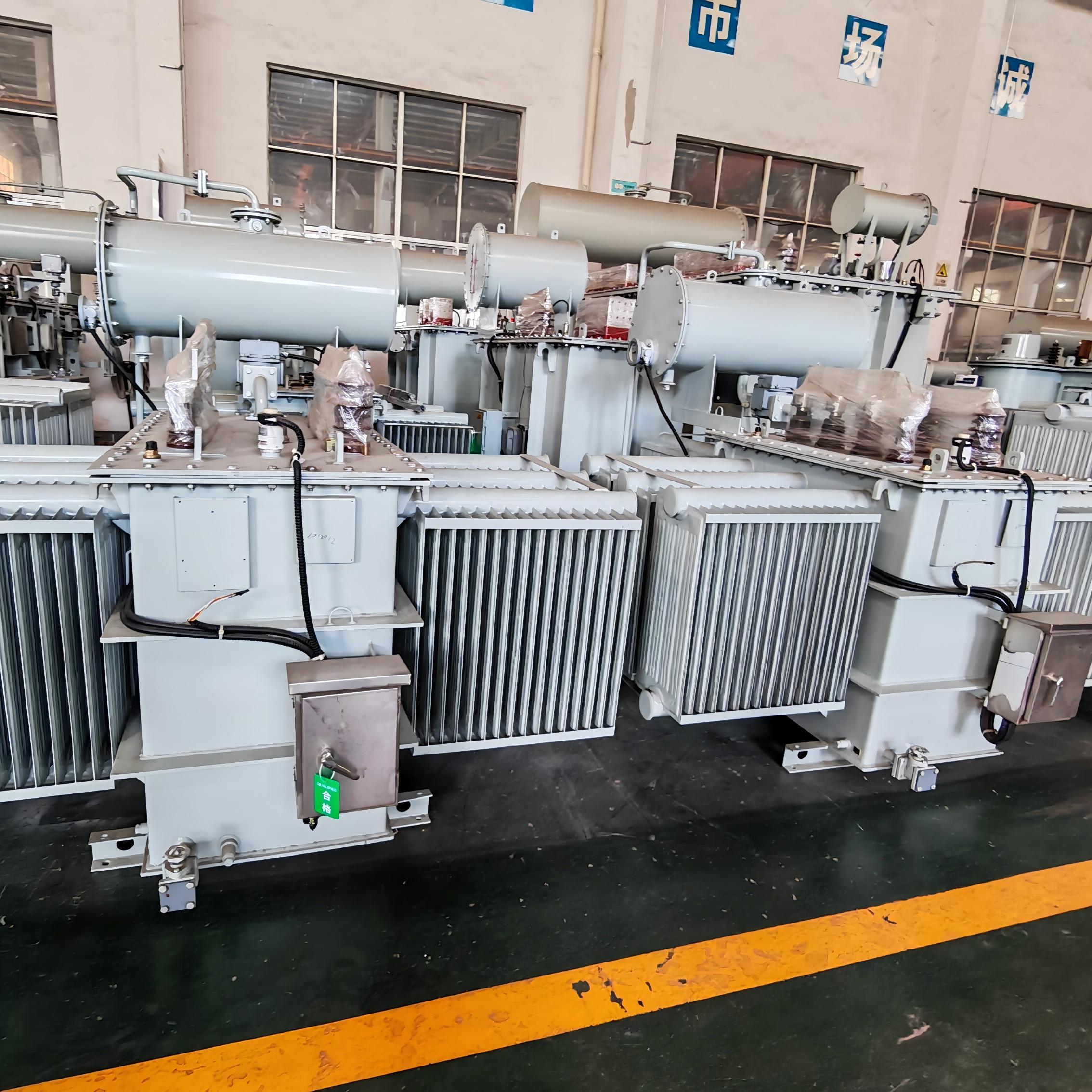

This 10kV 2000kVA fully sealed three phase transformer is a premium-gradeoil immersed transformer designed for 50Hz/60Hz AC power systems with a rated voltage up to 20kV. As a core power transformer and electrical transformer solution, it is widely applied in power distribution scenarios for petroleum, metallurgy, chemical, textile, light industry and other industrial fields, especially suitable for sites with heavy dust and harsh operating conditions.
As trusted distribution transformer suppliers, we adopt advanced fully sealed vacuum oil injection technology for this electric transformer. The whole structure isolates transformer oil from air completely, eliminating moisture and oxygen intrusion, preventing insulation aging and oil deterioration, and realizing maintenance-free oil sample testing, which greatly reduces operational and maintenance costs for users.
Professional distribution transformer suppliers offer high-performance 10kV 2000kVA oil immersed transformer. This three phase power transformer and electrical transformer features fully sealed structure, low loss, high safety, ideal for industrial power distribution. Shop reliableelectric transformer for harsh industrial environments now
Product Features
High-Efficiency Magnetic Core
This oil immersed transformer adopts high-permeability grain-oriented cold-rolled silicon steel sheets. It features an innovative full oblique lap laminated core structure, with multi-stage stepped round cross-section core columns and equal-section yoke and core design. This structure effectively reduces magnetic leakage, no-load loss and noise, improving the overall energy efficiency of the three phase transformer.
Optimized Winding Structure
The winding of this 2000kVA electrical transformer adopts corrugated oil duct design and paint-free manufacturing process, fixed with shrink belts for stable and durable structure. All windings are concentric coils. The high-voltage winding is equipped with standard tapping terminals matched with voltage regulation requirements, connected to the top-mounted tap changer. Voltage adjustment can only be carried out after power cut, ensuring safe and reliable voltage regulation operation for the power transformer.
Complete Safety Protection Configuration
Equipped with a standard pressure relief valve as mandatory safety configuration for 30-2000kVA distribution transformer, which can release internal pressure instantly to avoid equipment damage caused by overpressure. Customizable gas relay with alarm and trip terminals is available according to user demands, providing dual safety protection for power system operation.
Accurate Temperature Monitoring System
The top of the transformer tank is reserved with a professional thermometer tube seat, extending 120±10mm into the transformer oil for accurate real-time oil temperature detection. As a 1000-2000kVA high-capacity electric transformer, it is equipped with an outdoor signal thermometer, realizing real-time temperature monitoring and abnormal temperature early warning, adapting to outdoor and harsh industrial operating environments.
Fully Sealed Corrugated Tank Design
The transformer tank is made of high-strength corrugated plates with dust-proof spray coating on the surface, featuring firm paint film, corrosion resistance and dust resistance. The corrugated heat dissipation fins integrate heat dissipation and breathing functions. The elastic deformation of the fins automatically compensates the volume change of transformer oil caused by temperature rise and fall.
Vacuum Oil Injection & Maintenance-Free Performance
Adopts integral vacuum oil injection process to completely remove internal moisture. The fully sealed structure isolates the internal oil system from outside air, effectively avoiding insulation performance degradation and oil aging caused by oxygen and moisture erosion. The three phase transformer realizes long-term stable operation without regular oil sample testing, lowering daily maintenance pressure.
Specifications & Parameters
| Category | Specification / Description |
| Rated Capacity | 2000kVA |
| Rated Voltage Ratio | 10kv/0.4kv |
| Rated Frequency | 50 Hz / 60 Hz |
| Phase | Three Phase |
| Vector Group | Dyn11 / Yyn0 |
| No-load Loss | 1225W |
| Load Loss | 14640W |
| Short-circuit Impedance | 5% |
| Voltage Regulation Range | ±2×2.5% (No-load Tap Changer) |
| Cooling Mode | ONAN (Oil Natural Air Natural) |
| Protection Device | Pressure Relief Valve + Optional Gas Relay |
| Temperature Monitoring Device | Outdoor Signal Thermometer + Glass Thermometer Seat |
| Sealing Technology | Full Vacuum Oil Injection, Fully Sealed Structure |
Packaging, Warranty & Certifications Packaging：
All oil immersed transformer products are packaged with standard export wooden boxes and waterproof, dust-proof and shockproof packaging materials. We adopt fixed reinforcement packaging to avoid collision and damage during long-distance sea and land transportation. Each three phase transformer is equipped with complete product manuals, parameter certificates and accessory kits to ensure intact product delivery.
Warranty：
As professional distribution transformer suppliers, we provide a 12-18 months full warranty and lifelong technical support for all power transformer and electrical transformer products. During the warranty period, any quality problem caused by manufacturing defects enjoys free maintenance and parts replacement. We provide 24/7 online technical consultation and after-sales service to solve users’ operation and maintenance problems in a timely manner..
Quality Certifications：
IEC 60076 compliant, with routine and type test reports. Additional certifications (ISO 9001, ISO 14001, etc.) and third-party testing available upon request. Suitable for international projects and utility approvals.
Technical Support：
As one of the reliable distribution transformer suppliers and manufacturers of power transformers, we provide competitive pricing on power transformer for sale options, including specialized power plant transformers and cooper power transformers equivalents.
Contact us for quotes, custom specifications, or to discuss your requirements in the power transformer market.
FAQ
What materials are used in your sealed oil immersed distribution transformers?
Our sealed oil immersed distribution transformers use premium cold-rolled silicon steel for the wound core, reducing losses. The windings are made from high-conductivity copper or aluminum. The transformers are filled with mineral insulating oil compliant with IEC 60296, ensuring safety and efficiency.
Can you customize the voltage and capacity of your power distribution transformers?
Yes, we provide a wide range of rated capacities from 30 kVA to 2500 kVA and multiple voltage options including 6 kV to 35 kV on the high voltage side. Our power distribution transformer customization services can accommodate your specific project requirements.
What installation considerations should I be aware of for your distribution transformer?
Our distribution transformer features a compact design with wave-plate radiator cooling for efficient heat dissipation. It requires stable, level ground with proper ventilation to maintain standard ONAN cooling performance. We also provide technical support to ensure proper installation and commissioning.
How does your sealed design reduce transformer maintenance needs?
The fully sealed corrugated tank isolates oil from moisture and contaminants, eliminating the need for an oil conservator and reducing routine maintenance. This design ensures long service life and reliable operation, making our sealed oil filled distribution transformers ideal for remote or hard-to-service locations.
